Smart Dashboard System using ESP32 Terminal
Smart Dashboard System using ESP32 microcontrollers, designed to monitor and control environmental parameters in indoor spaces. The system comprises two ESP32 boards: one for sensing data and another for displaying the readings. The sensing microcontroller has various sensors, including the DHT11 for temperature and humidity, MQ135 for air quality, and MQ9 for CO2 levels. Additionally, a buzzer is used to signal changes and assist in light control. Data from these sensors is transmitted over Wi-Fi via the MQTT protocol to a cloud service, where it is processed and shared with the display module.
Created: Nov 22, 2025
Updated: Jan 01, 2026
ESP32MQTT
Project Overview
Smart Dashboard System for Indoor Environmental Monitoring Using ESP32
Project Overview
This project presents a smart dashboard system for real-time indoor environmental monitoring, utilizing dual ESP32 microcontrollers. The system continuously tracks key indoor conditions including temperature, humidity, air quality, and gas levels, displaying data on a dedicated graphical interface.
System Architecture and Operation
The system is implemented using a distributed two-module design:
Sensing Module
Components:
DHT11 sensor for temperature and humidity measurement
MQ135 sensor for air quality assessment
MQ9 sensor for CO₂ and gas level detection
Buzzer for environmental change alerts and feedback
Function: Collects environmental data and transmits it wirelessly via Wi-Fi using the MQTT protocol to a cloud-based service.
Display Module
Components:
ESP32 with integrated SPI display (CrowPanel ESP32 Terminal, 3.5-inch) or OLED display
Function: Receives processed sensor data from the cloud service and presents it through a custom-designed graphical user interface, updated in real time.
Hardware Requirements
ESP32 Development Module (×2)
CrowPanel ESP32 Terminal (3.5-inch SPI display) or OLED Display
DHT11 Temperature and Humidity Sensor
MQ135 Air Quality Sensor
MQ9 Gas Sensor
Buzzer
5V Power Supply or USB Adapter
Software and Development Tools
Arduino IDE for firmware development and programming
SquareLine Studio for designing and implementing the graphical user interface
MQTT Protocol for wireless data transmission
Project Objective
To develop a reliable, wireless monitoring system that provides comprehensive indoor environmental tracking for applications in smart homes, offices, and laboratories, emphasizing user-friendly data visualization.
Key Features
Distributed architecture with dedicated sensing and display modules
Real-time wireless data transmission using MQTT protocol
Comprehensive environmental parameter monitoring (temperature, humidity, air quality, gas levels)
Visual and auditory alerting mechanisms
Customizable graphical user interface for enhanced user experience
This system demonstrates the integration of embedded sensing, wireless communication, and graphical display technologies to create a practical solution for indoor environmental awareness and management.
Gallery

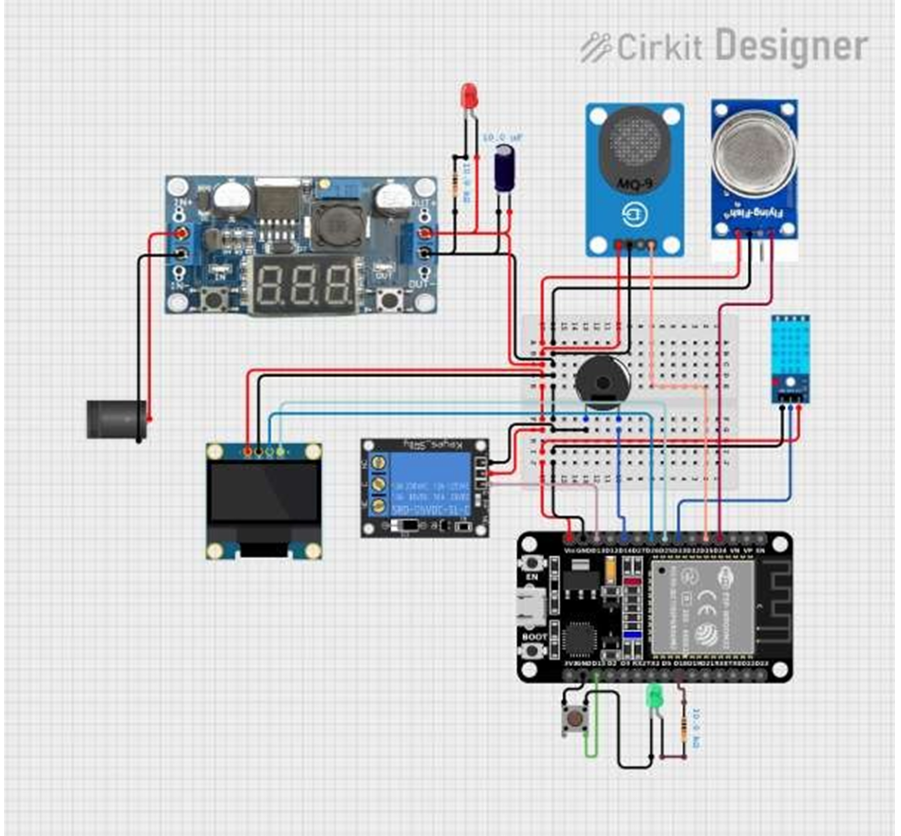

Circuit diagram
Sensor board
Code Examples
cpp
