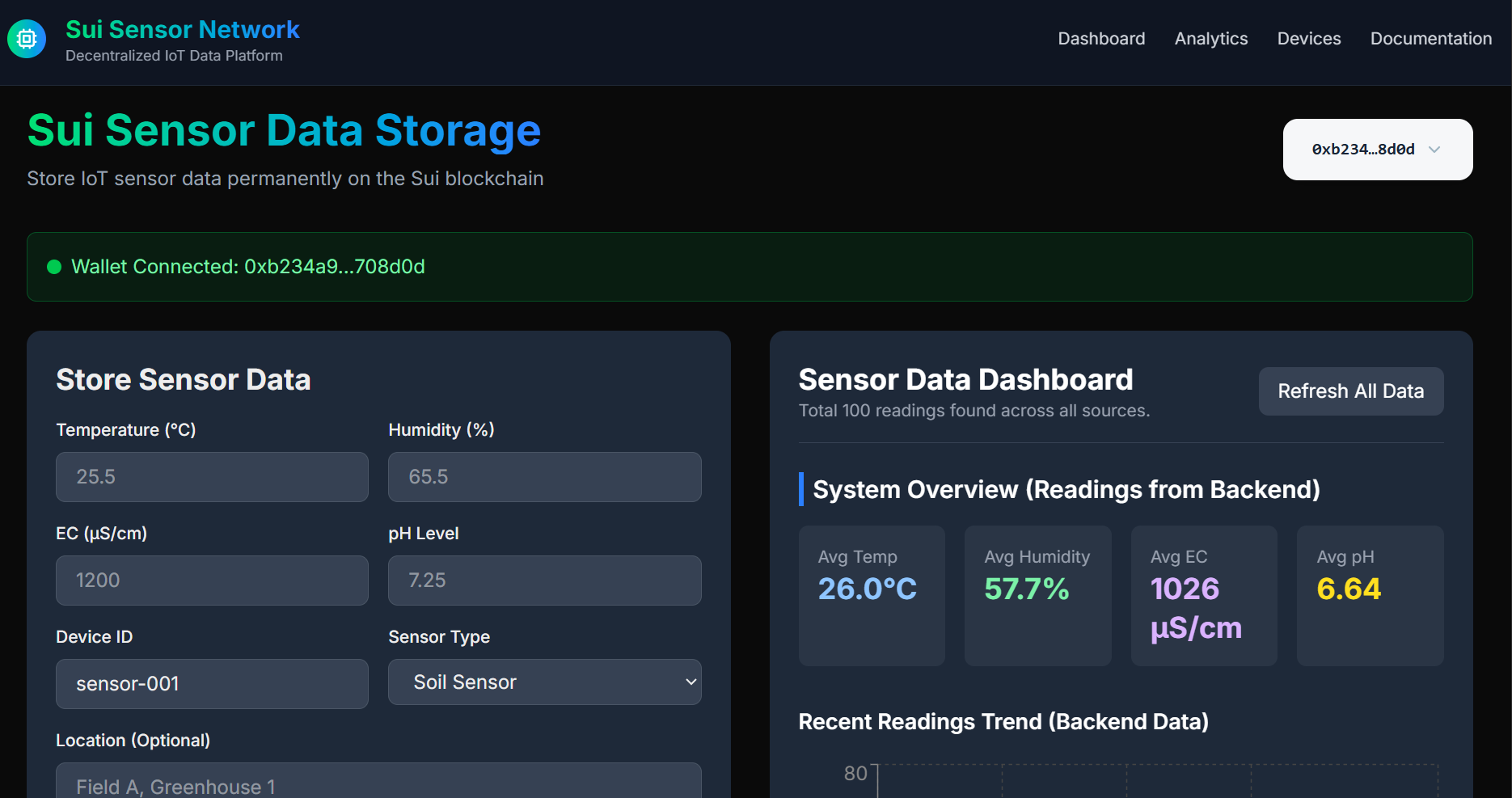

Sui Sensor Storage DApp: Blockchain-Powered IoT Data Management

1#include "sui_transaction.h"
2#include <MicroSui.h>
3
4void submitWithLocalBuild() {
5  // Step 1: Get gas digest info from server
6  HTTPClient http;
7  String url = serverUrl + "/api/create-digest?senderAddress=" + myAddress;
8  http.begin(url);
9  int code = http.GET();
10
11  if (code == 200) {
12    String response = http.getString();
13    // Parse: gasObjectId, gasVersion, gasDigest (Base58)
14    DigestResponse digestInfo = parseDigestResponse(response);
15
16    // Step 2: Build transaction locally using BCS encoding
17    transaction_builder_t params = {0};
18
19    // Set package ID, module, function
20    bcs_hex_to_bytes(PACKAGE_ID, params.package_id, 32, &bytes_read);
21    params.module_name = "sensor_storage";
22    params.function_name = "store_sensor_data";
23
24    // Set sensor data
25    params.sensor_data.value1 = temperature;  // in hundredths
26    params.sensor_data.value2 = humidity;     // in hundredths
27    params.sensor_data.value3 = ec;
28    params.sensor_data.value4 = ph;
29    params.sensor_data.timestamp = getCurrentTimestamp();
30
31    // Set gas object from server response
32    bcs_hex_to_bytes(digestInfo.gasObjectId, params.gas_object.object_id, 32, &bytes_read);
33    params.gas_object.version = digestInfo.gasVersion;
34    base58_to_bytes(digestInfo.gasDigest, params.gas_object.digest, 32);
35
36    params.gas_budget = 100000000;
37    params.gas_price = 1000;
38
39    // Build transaction (BCS serialization)
40    char* txHex = nullptr;
41    size_t txHexLen = 0;
42    bcs_error_t err = sui_build_sensor_transaction(&params, &txHex, &txHexLen);
43
44    if (err == BCS_OK) {
45      // Step 3: Sign with MicroSui
46      MicroSuiEd25519 keypair = SuiKeypair_fromSecretKey(PRIVATE_KEY);
47
48      // Convert hex to bytes for signing
49      uint8_t txBytes[txHexLen / 2];
50      hexToBytes(txHex, txBytes, txHexLen / 2);
51
52      // Sign transaction
53      char signature_b64[256];
54      SignatureResult sig = keypair.signTransaction(&keypair, txBytes, txHexLen / 2);
55      bytesToBase64(sig.signature, sig.signatureLength, signature_b64);
56
57      // Step 4: Submit to execute-sponsored
58      http.begin(serverUrl + "/api/execute-sponsored");
59      http.addHeader("Content-Type", "application/json");
60
61      String payload = "{";
62      payload += "\"temperature\":" + String(temperature) + ",";
63      payload += "\"humidity\":" + String(humidity) + ",";
64      payload += "\"ec\":" + String(ec) + ",";
65      payload += "\"ph\":" + String(ph) + ",";
66      payload += "\"timestamp\":" + String(getCurrentTimestamp()) + ",";
67      payload += "\"signature\":\"" + String(signature_b64) + "\"";
68      payload += "}";
69
70      int submitCode = http.POST(payload);
71      if (submitCode == 200) {
72        Serial.println("✓ Transaction executed on blockchain!");
73      }
74
75      free(txHex);
76    }
77  }
78  http.end();
79}

1#include <WiFi.h>
2#include <HTTPClient.h>
3#include <MicroSui.h>  // MicroSui library for signing
4
5// Your device's private key (store securely!)
6const char* privateKey = "your_private_key_here";
7const char* serverUrl = "https://your-server.com";
8
9void submitSensorDataWithSigning() {
10  // 1. Collect sensor data
11  float temperature = readTemperature();
12  float humidity = readHumidity();
13  int ec = readEC();
14  float ph = readPH();
15
16  // 2. Request unsigned transaction from server
17  HTTPClient http;
18  http.begin(serverUrl + "/api/build-tx");
19  http.addHeader("Content-Type", "application/json");
20
21  String payload = "{";
22  payload += "\"temperature\":" + String(temperature) + ",";
23  payload += "\"humidity\":" + String(humidity) + ",";
24  payload += "\"ec\":" + String(ec) + ",";
25  payload += "\"ph\":" + String(ph) + ",";
26  payload += "\"deviceId\":\"ESP32_001\",";
27  payload += "\"sensorType\":\"Soil Sensor\",";
28  payload += "\"location\":\"Field A\"";
29  payload += "}";
30
31  int httpCode = http.POST(payload);
32
33  if (httpCode == 200) {
34    String response = http.getString();
35    String txBytes = extractTxBytes(response);  // Parse JSON
36
37    // 3. Sign transaction using MicroSui
38    MicroSui sui;
39    String signature = sui.signTransaction(txBytes, privateKey);
40
41    // 4. Submit signed transaction
42    http.begin(serverUrl + "/api/submit-tx");
43    http.addHeader("Content-Type", "application/json");
44
45    String submitPayload = "{";
46    submitPayload += "\"txBytes\":\"" + txBytes + "\",";
47    submitPayload += "\"signature\":\"" + signature + "\"";
48    submitPayload += "}";
49
50    int submitCode = http.POST(submitPayload);
51
52    if (submitCode == 200) {
53      Serial.println("Transaction submitted successfully!");
54    }
55  }
56
57  http.end();
58}

1#include <WiFi.h>
2#include <HTTPClient.h>
3
4const char* serverUrl = "https://your-server.com";
5
6void submitSensorDataSimple() {
7  // 1. Collect sensor data
8  float temperature = readTemperature();
9  float humidity = readHumidity();
10  int ec = readEC();
11  float ph = readPH();
12
13  // 2. Send directly to server - server handles everything
14  HTTPClient http;
15  http.begin(serverUrl + "/api/sensor-data");
16  http.addHeader("Content-Type", "application/json");
17
18  String payload = "{";
19  payload += "\"temperature\":" + String(temperature) + ",";
20  payload += "\"humidity\":" + String(humidity) + ",";
21  payload += "\"ec\":" + String(ec) + ",";
22  payload += "\"ph\":" + String(ph) + ",";
23  payload += "\"deviceId\":\"ESP32_001\",";
24  payload += "\"sensorType\":\"Soil Sensor\",";
25  payload += "\"location\":\"Field A\"";
26  payload += "}";
27
28  int httpCode = http.POST(payload);
29
30  if (httpCode == 200) {
31    String response = http.getString();
32    Serial.println("Data submitted successfully!");
33    Serial.println(response);
34  } else {
35    Serial.println("Error submitting data");
36  }
37
38  http.end();
39}
